HJ0604 Semi-conductive Insulation Shielding Compound for MV Power Cables [Fast Line Speed Grade]

The strippable semi-conductive insulation shielding material for high-speed production is suitable for high-speed extrusion process. It can achieve a line speed of 10 meters/minute when the cable cross-section is 500mm², which greatly improves production efficiency. It is recommended to be used with our company's high-speed conductor shielding material HJ0304 to achieve the best synergy of the overall system.
The material design focuses on high-speed extrusion requirements and has excellent melt flow performance and rapid prototyping capabilities. Under the premise of ensuring quality, it supports high-speed operation of the production line and effectively reduces unit production costs. It is an ideal choice for modern large-scale cable production lines.
The adhesion between the material and the insulation layer has been optimized to ensure that the insulation surface will not be damaged during the stripping process, and the stripping is uniform and without residue, which is convenient for on-site construction and maintenance, and is particularly suitable for engineering projects that require rapid assembly.

Physical Properties	Test Method	Unit	Typical Value
Density, 23℃	ASTM D1505	g/cm³	1.15
Tensile Strength	ASTM D638	MPa	12
Elongation at Break	ASTM D638	%	220
After Oven Aging, 168hrs at 136℃	ASTM D638
Tensile Strength Retention		%	≥85
Elongation at Break Retention		%	≥85
Hot Set Test, 200°℃, 0.2MPa, 15min	IEC540
Elongation under Loading		%	40
Permanent Deformation after Cooling		%	6
Moisture Content	Karl Fisher	ppm	450
Britleness Temperature	ASTM D746	℃	45
Electrical Properties
DC Volume Resistivity at
20℃	ASTM D991	Ω.cm	50
90℃		Ω.cm	500

1. Temperature Setting of Extruder:
a

Zone	1#	2#	3#	4#	Tube	Head
Temp.	75℃	85℃	95℃	105℃	105℃	105℃

Zone	1#	2#	3#	4#	Tube	Head	Feeding 、Water Cooling 、Screw
Temp.	70℃	85℃	95℃	105℃	105℃	105℃	65℃

2. It's recommended to use stainless steel wire filter(20×40×20).
3. The above temperature settings are the most typical ones. With different extruder devices, it can be adjusted in terms of the practical situation after extrusion in use, combining with melting pressure and current, in order to achieve the best extrusion result.

HJ0604 meets the applicable requirements as below when processed using sound extrusion practices and testing procedures.
-AEIC CS 8
-ICEA S-94-649
-IEC 60502

HJ0604 is specially designed for high line speed cable, which verified that the speed can achieve 10m/min for processing the cable 500mm². Recommended to use with our high speed conductor.
shielding grade HJ0304.

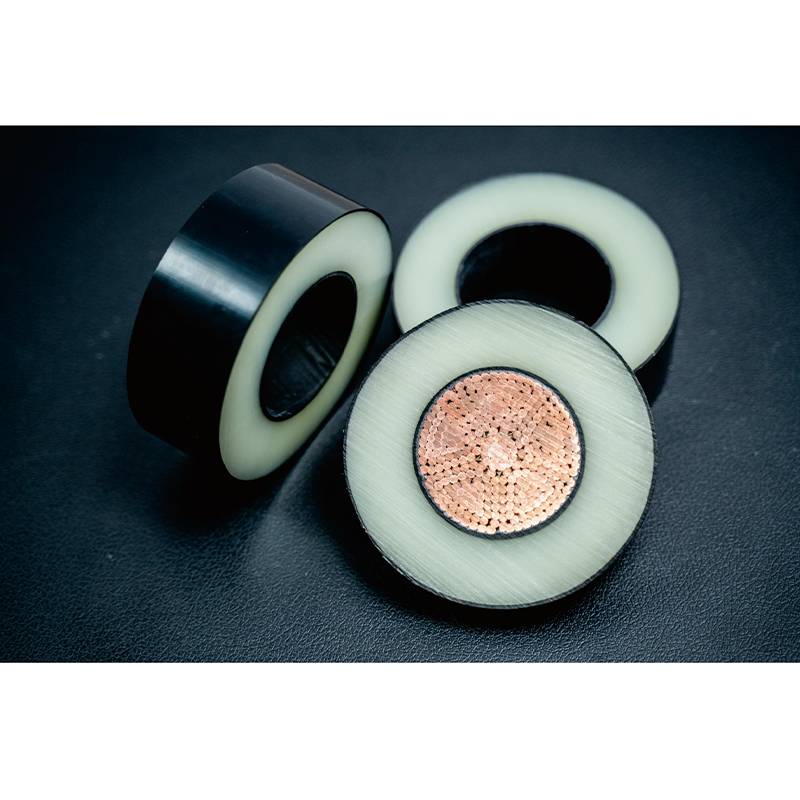

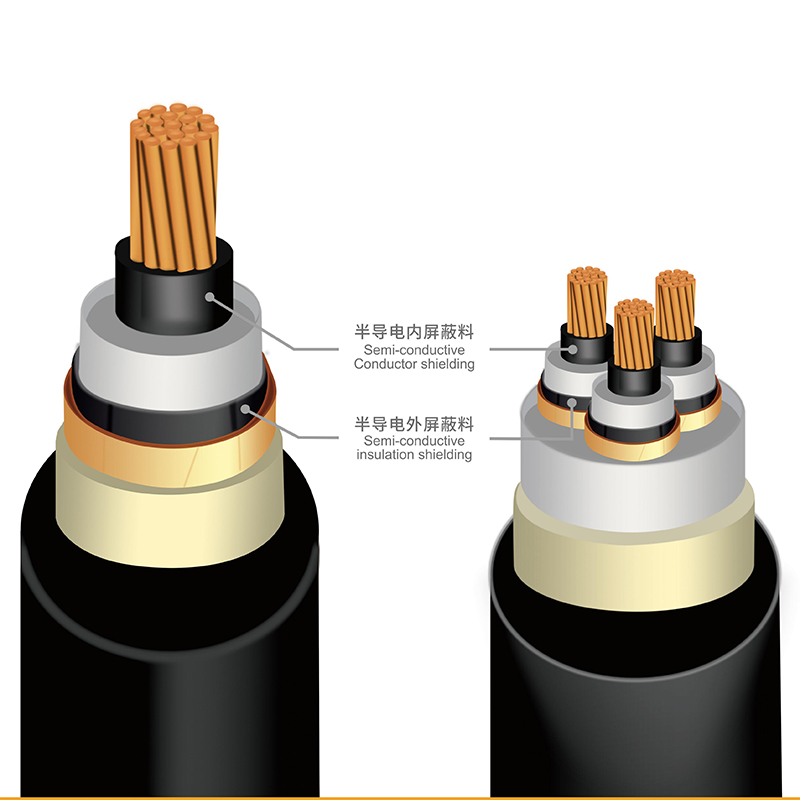

HJ0604 is a cross-linkable semi-conductive shielding compound, specially designed for strippable insulation shielding compound of extruded insulated power cables rated voltage up to 36KV
It is suitable for dry vulcanization processing method at high temperature. It provides fine surface smoothness, nice extrusion flowability, good performance to prevent scorch and stable volume resistivity.
