HJ0602 Semi-conductive Insulation Shielding Compound For MV Power Cables [Easy Strippable Grade]

Low peeling force strippable semi-conductive insulation shielding material is an easy-to-peel cross-linked semi-conductive insulation shielding material designed for medium-voltage power cables. It is suitable for extruded insulated cable systems with a rated voltage not exceeding 36kV. The biggest highlight of this product is its low peeling force (≤20N/cm), which can easily separate the insulation layer from the shielding layer, greatly improving the construction convenience and on-site maintenance efficiency. At the same time, it has good electrical properties, processing performance and stable cross-linking characteristics, and is one of the high-quality solutions for medium-voltage cable insulation shielding layers.
It has excellent melt flow performance and is suitable for various dry vulcanization extrusion equipment. Under high-speed extrusion conditions, a smooth, uniform and dense extrusion layer can still be obtained, ensuring the appearance and performance of the finished cable.

Physical Properties	Test Method	Unit	TypicalValue
Density, 23℃	ASTM D1505	g/cm³	1.15
Tensile Strength	ASTM D638	MPa	12
Elongation at Break	ASTM D638	%	220
After Oven Aging, 168hrs at 136℃	ASTM D638
Tensile Strength Retention		%	≥85
Elongation at Break Retention		%	≥85
Hot Set Test, 200°℃, 0.2MPa, 15min	IEC540
Elongation under Loading		%	40
Permanent Deformation after Cooling		%	6
Moisture Content	Kar Fisher	ppm	450
Brittleness Temperature	ASTM D746	℃	.45
Electrical Properties
DC Volume Resistivity at
20℃	ASTM D991	Ω.cm	50
90℃		Ω.cm	500

1. Temperature Setting of Extruder
a

Zone	1#	2#	3#	4#	Tube	Head
Temp. (℃)	75℃	85℃	95℃	105℃	105℃	105℃

Zone	1#	2#	3#	4#	Tube	Head		Feeding、Water Cooling、Screw
Temp. (℃)	70℃	85℃	95℃	105℃	105℃	105℃		65℃

2. It's recommended to use stainless steel wire filter(20×40×20).
3. The above temperature setting are the most typical ones. With different extruder devices, it can be adjusted in terms of the practical situation after extrusion in use, combining with melting pressure and current, in order to achieve the best extrusion result.

HJ0602 meets the applicable requirements as below when processed using sound extrusion practices and testing procedures.
-AEIC CS 8
-ICEA S-94-649
-IEC 60502

HJ0602 is a easy strippable insulation shielding compound, the peel force≤20N/CM.

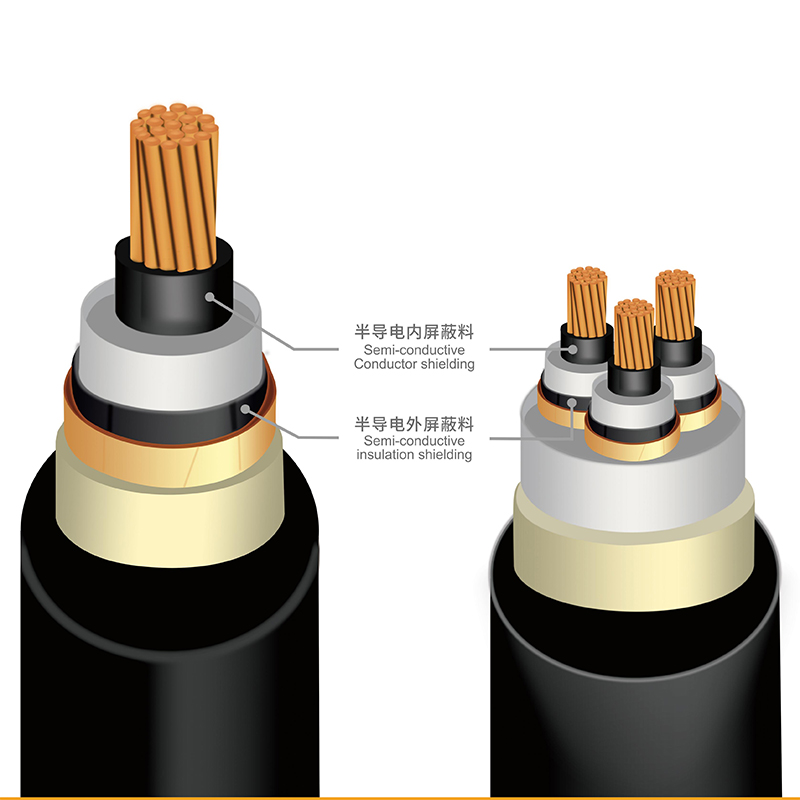

HJ0602 is a cross-linkable semi-conductive shielding compound, specially designed for strippable insulation shielding compound of extruded insulated power cables rated voltage up to 36KV.
It is suitable for dry vulcanization processing method at high temperature. It provides fine surface smoothnessnice extrusion flowabilty, good performance to prevent scorch and stable volume resistivity.

HJ Polymer China Co., Ltd. founded in 2002, specializes in the R&D and manufacturing of high-performance semi-conductive shielding materials for cables. With an annual production capacity of 62,000 tons, the company holds over 40% of the domestic market and exports to Europe, the U.S., the Middle East, and Asia.

Delivery Capacity

HJ Polymer operates 13 dedicated production lines within a 30,000+ m2 facility, utilizing automated process control systems to ensure efficient and stable delivery.

Collaboration

Our R&D team includes PhDs and senior engineers actively involved in national and industry standards. We’ve also established a graduate workstation with Jiangsu University of Science and Technology, promoting integrated industry-academia collaboration.
