Low、Medium Voltage Power Cable

HJ0286 [Strippable] Thermoplastic Shielding Compound for Sioplas Method

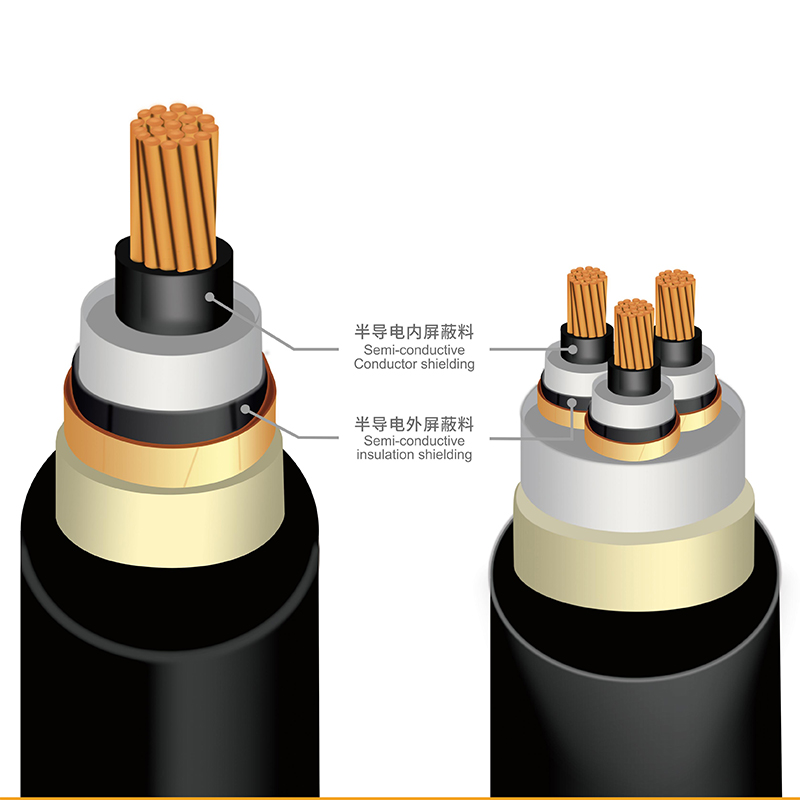

Thermoplastic strippable insulation shielding material is a non-cross-linked thermoplastic semi-conductive composite material developed specifically for silane cross-linked overhead cables (Sioplas method). This material is used for the shielding structure outside the insulation layer. While ensuring stable electrical performance, it also has good processing performance and strippable characteristics. It is especially suitable for overhead cable systems using warm water cross-linking.
Strippable design
Maintaining appropriate adhesion with the insulation layer, it is convenient for mechanical stripping during construction without damaging the insulation body, improving the efficiency of later installation and maintenance, and is particularly suitable for branch joints, terminal processing and other operation scenarios.
It has excellent thermal stability under high temperature extrusion conditions, greatly reducing common problems such as carbonization, scorching, and die accumulation, improving production efficiency and reducing downtime risks.

PREV：No previous article
NEXT：HJ0283 Thermoplastic Shielding Compound for Sioplas Method HJ0283 Sioplas

Features
Process Technology
Specifications
Application

Physical Properties	Test Method	Unit	Standard	Typical Value
Density, 23℃	ASTM D1505	g/cm³	≤1.2	1.12
Tensile Strength	ASTM D638	Mpa	≥9	10
Elongation at Break	ASTM D638	%	≥200	220
After Oven Aging, 240hrs at 100℃	ASTM D638
Tensile Strength		%	≥80	≥85
Elongation at Break		%	≥80	≥85
Moisture Content	Karl Fisher	ppm	≤500	450
Brittleness Temperature	ASTM D746	℃	≤-40	-45
Electrical Properties
DC Volume Resistivity at

20℃	ASTM D991	Ω.cm	≤100	10

90℃		Ω.cm	≤1000	400

1. Temperature Setting of Extruder:

Zone	1#	2#	3#	4#	Head	Feeding、Water Cooling、Screw
Temp.	140℃	150℃	155℃	160℃	165℃	65℃

2.It's recommended to use stainless steel wire filter(20×40×20).
3. The above temperature settings are the most typical ones. With different extruder devices, it can be adjusted in terms of the practical situation after extrusion in use, combining with melting pressure and current, in order to achieve the best extrusion result.

HJ0286 meets the applicable requirements as below when processed using sound extrusion practices and testing procedures.
-AEIC CS 8
-ICEA S-94-649
-IEC 60502

HJ0286 is a thermoplastic non-crosslinked insulation shielding compound for silane crosslinkable overhead cable.
It is applicable for warm water crosslinking method, with fine surface smoothness, good fluidity, and anti-coking extrusion characteristics.
The product has excellent conductivity, processability and mechanical property.
