| Physical Properties | Unit | Standard | Typical Value | |||||
| Density,23℃ | g/cm³ | ≤1.5 | 1.45 | |||||
| Melt flow rate | g/10min | ≤2.0 | 1.85 | |||||
| Tensile Strength | MPa | ≥12.5 | 13.8 | |||||
| Elongation at Break | % | ≥150 | 185 | |||||
| After Oven Aging,240hrs at 100℃ | Mpa | |||||||
| Tensile Strength Retention | % | ≥85 | ||||||
| Elongation at Break Retention | % | ≤180 | 198 | |||||
| Brittleness Temperature | ℃ | ≤-15 | Pass | |||||
| DC Volume Resistivity at 20℃ | Ω.cm | ≤500 | 150 | |||||
| Oxygen index | - | ≥27.5 | 28.5 | |||||
1. Temperature Setting of Extruder:
| Zone | 1# | 2# | 3# | 4# | Head | Feeding 、Water Cooling 、Screw |
| Temp. | 140℃ | 150℃ | 155℃ | 160℃ | 165℃ | 65℃ |
2. It's recommended to use stainless steel wire filter(20×40×20).
3. The above temperature setting are the most typical ones. With different extruder devices, it can be adjusted in terms of the practical situation after extrusion in use, combining with melting pressure and current, in order to achieve the best extrusion result.
4. After a lone storage period the material needs to be dried before use.
HJ0281 meets the applicable requirements as below when processed under commercial manufacturing practices and testing procedures.

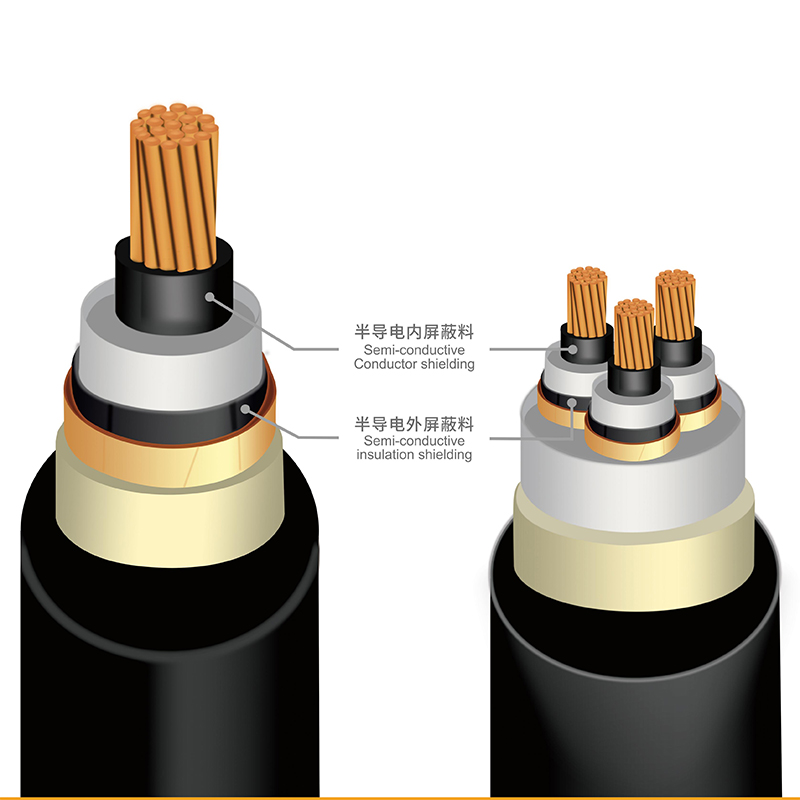

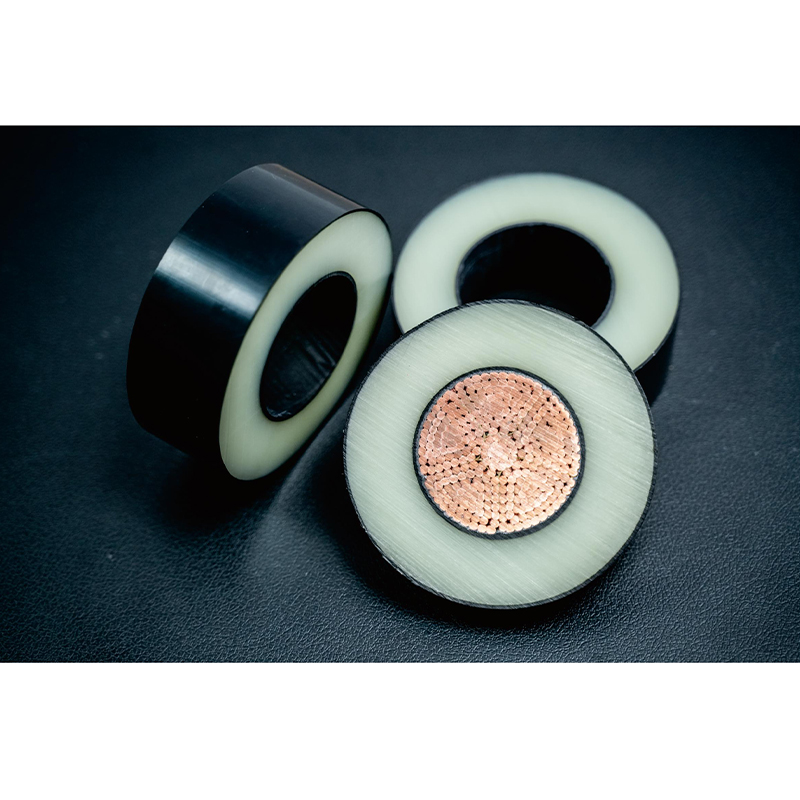

HJ0281 is a thermoplastic flame retardant conductive sheathing material, which can be used as high voltage cable(110kV、220kV、 500kV)flame retardant conductive outer sheathing layer. It has excellent electrical conductivity, mechanical properties and processing properties,flame retardancy.
